    600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable

    Ask Lasest Price
    Brand Name : JinHong
    Model Number : BVVB
    Certification : CCC
    Price : 0.12-0.17USD
    Payment Terms : T/T
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable

    BVVB Flat Sheathed PVC Insulated Copper Cable
    BVVB Cable is a Flat Sheathed PVC Insulated and Sheathed Copper Wire designed for fixed electrical installations where space-saving and compact routing are required.
    Cable Designation Breakdown
    • B: Insulated Wiring (Chinese standard designation)
    • V: PVC Insulation
    • V: PVC Sheath
    • B: Flat Type
    Applications
    • Building Wiring: Fixed electrical circuits in residential and commercial buildings, especially for surface mounting
    • Lighting Systems: Wiring for lighting fixtures and decorative lighting
    • Power Distribution: Connections for appliances, outlets, and switches
    • Temporary Installations: Exhibition wiring and temporary power supply (with additional protection)
    Key Advantages
    • Space-Saving Design: Flat structure allows for compact routing and easy surface mounting
    • Easy to Install: Pre-assembled parallel conductors simplify installation
    • Cost-Effective: Affordable solution for fixed electrical installations
    • Aesthetic Appeal: Neat and tidy appearance for exposed wiring applications
    Selection Guidelines
    For Lighting Circuits:
    • General Lighting: 2*1.5 mm², 300/500V
    • Decorative Lighting: 2*0.75 mm², 300/300V
    • Commercial Lighting: 2*2.5 mm², 300/500V
    For Power Outlets:
    • General Sockets: 2*2.5 mm², 300/500V
    • Kitchen Appliances: 3*2.5 mm², 450/750V
    • Air Conditioners: 3*4 mm², 450/750V
    For Special Applications:
    • Control Circuits: 2*1.5 mm², 300/300V
    • Equipment Power: 3*6 mm², 450/750V
    • Industrial Use: 3*10 mm², 450/750V
    Technical Specifications
    Nominal Section (mm²)Number/Diameter of Core (mm)Maximum Outer Diameter (mm)Reference Weight (kg/km)Conductor Resistance at 20℃ (Ω/km)
    2x0.752*1/0.974.8*7.043.7-
    2x1.02*1/1.134.8*7.451.0-
    2x1.52*1/1.385.4*8.465.9-
    2x2.52*1/1.786.2*9.895.77.41
    2x42*7/0.857.2*11.5146.04.61
    2x62*7/1.048.0*13.0200.03.08
    2x102*7/1.359.6*16.0323.01.83
    3x0.753*1/0.974.6*9.462.624.50
    3x1.03*1/1.134.8*9.874.318.10
    3x1.53*1/1.385.4*11.595.612.10
    3x2.53*1/1.786.2*13.51407.41
    3x43*7/0.857.4*16.52207.41
    3x63*7/1.048.0*18.02954.61
    3x103*7/1.359.6*22.54851.83
    BVVB Cable product overview showing flat design and construction Close-up view of BVVB cable cross-section and conductor details BVVB cable installation examples and applications
    Frequently Asked Questions
    1. What does BVVB stand for?
    • B: Fixed wiring cable (Chinese standard classification)
    • V: PVC insulation
    • V: PVC sheath
    • B: Flat type design
    BVVB is a flat-type PVC insulated and sheathed copper cable designed for fixed electrical installations where space-saving and surface mounting are required.
    2. What are the standard voltage ratings for BVVB cable?
    • 300/300V: For low-voltage lighting and signal circuits
    • 300/500V: Most common for residential and commercial applications
    • 450/750V: For higher power applications and industrial use
    • Special Versions: 250/440V for specific markets, 600/1000V for industrial applications
    3. Where is BVVB cable typically used?
    • Residential buildings: Surface-mounted wiring for sockets and lighting
    • Commercial spaces: Office power distribution, retail store installations
    • Renovation projects: Retrofitting existing buildings without concealed conduits
    • Temporary installations: Exhibition booths, stage wiring, construction sites
    • Furniture manufacturing: Built-in electrical systems for cabinets and displays
    4. What is the temperature rating of BVVB cable?
    • Normal operating temperature: -15°C to +70°C
    • Maximum conductor temperature: 70°C continuous operation
    • Short-circuit withstand: 160°C for maximum 5 seconds
    • Installation temperature: Minimum 0°C to prevent sheath damage
    5. What safety standards does BVVB comply with?
    • International: IEC 60227
    • Chinese National: GB/T 5023
    • Certifications: CCC (China Compulsory Certification), CE marking
    • Fire Performance: Standard version has basic flame retardancy (for enhanced safety, choose ZR-BVVB)
    6. Can BVVB be used outdoors or in wet locations?
    • Not recommended for direct outdoor exposure
    • Suitable for indoor dry locations only
    • Requires additional protection (conduits, trunking) in damp areas
    • Not designed for direct burial or prolonged moisture exposure
    7. What are the available conductor configurations?
    • 2-core: For basic lighting and socket circuits
    • 3-core: For grounded applications and three-phase systems
    • Conductor Sizes: 0.75 mm² to 10 mm² per core
    • Common Combinations: 2*1.5 mm², 2*2.5 mm², 3*1.5 mm², 3*2.5 mm²
    8. What is the current carrying capacity of BVVB?
    Examples for 300/500V BVVB:
    • 2*1.5 mm²: 16-20A (depending on installation method)
    • 2*2.5 mm²: 20-27A
    • 3*1.5 mm²: 14-18A
    • 3*2.5 mm²: 18-25A
    Note: Actual capacity varies with installation conditions and local regulations
    9. What are the main advantages of BVVB cable?
    • Space Efficiency: Flat design saves space in shallow installations
    • Easy Installation: Pre-arranged conductors simplify wiring
    • Aesthetic Appeal: Neat appearance for surface-mounted applications
    • Cost-Effective: Economical solution for basic power and lighting circuits
    • Time Saving: Faster installation compared to separate round cables
    10. How should BVVB be installed and supported?
    • Fixing Methods: Use flat cable clips or adhesive channels
    • Support Spacing: Every 30-50 cm for horizontal runs
    • Bending Radius: Minimum 6* cable width
    • Protection: Additional conduits in high-traffic areas
    • Separation: Maintain distance from heat sources and sharp edges

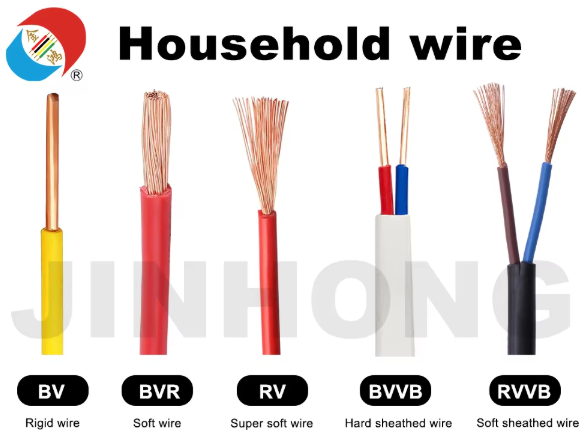

    Comparison diagram of different cable types: BV, BVR, RV, BVVB, and RVVB
    Cable Type Comparison
    • BV: Rigid wire, a single-core copper wire
    • BVR: Flexible wire, a single-core wire made of multiple copper strands twisted together
    • RV: Also a flexible wire, generally not used for home decoration
    • BVVB: Rigid sheathed wire, two or more BV wires sheathed together
    • RVVB: Flexible sheathed wire, two, three, or four RV wires sheathed together
